Semiconductor Gas Distribution Plate CNC Machining
Gas Distribution Plate Machining

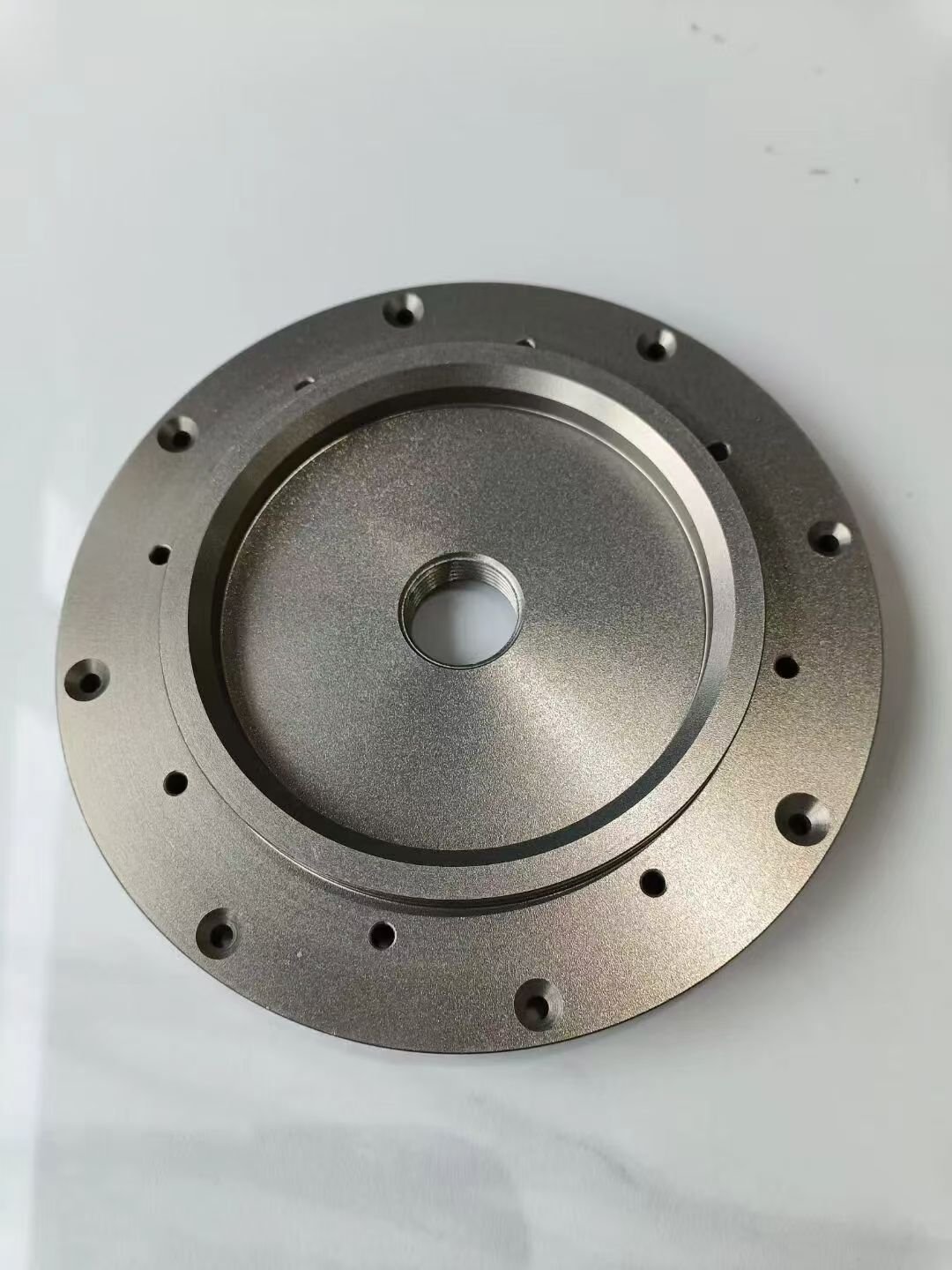

Semiconductor gas distribution plate CNC machining produces components that control gas delivery inside semiconductor processing equipment.
These plates often combine dense hole patterns, internal channels, circular pockets and mounting features within a compact structure.
Main Machining Challenges
The large number of closely spaced holes can create long drilling cycles. Internal channels may also approach the plate from different directions and connect beneath the surface.
Tool access, chip removal and the sequence of intersecting features must therefore be considered before machining begins.
Machining Strategy
| Machining requirement | Typical CNC operation |
|---|---|
| Main plate surfaces | Face milling |
| Circular recesses | Pocket milling |
| Dense hole patterns | CNC drilling |
| Internal gas channels | Deep-hole drilling |
| Side connections | Multi-side machining |
| Assembly features | Drilling and threading |
The selected machine configuration depends on the position of the channels and the number of accessible faces.
Hole and Channel Machining
CAM software defines the drilling sequence for each hole group. The program may divide dense patterns into several sections to support efficient tool movement and chip evacuation.
Internal channels are machined in a controlled sequence so intersecting passages connect at the correct locations. Side-entry channels may require the plate to be repositioned or rotated on a multi-axis machine.
Workholding Approach
The fixture must support the plate without blocking the hole pattern or side connections.
For the first operation, the machine produces the main recesses and accessible holes. A second setup may be used for the opposite face and side channels.
Four-axis or five-axis machining can reduce manual repositioning when several faces require access.
Production Planning
The first plate requires CAM programming, drilling-sequence planning and fixture preparation.
For repeat orders, stored CNC programs and dedicated fixtures help reduce setup time. Tool changes and drilling cycles can also be optimized after the initial production run.
Quotation Information
Customers should provide a STEP model, technical drawing, overall dimensions, hole information, revision number, quantity and delivery requirements.
These files allow the supplier to evaluate channel access, machine capacity and estimated cycle time.
Conclusion
Semiconductor gas distribution plate CNC machining combines pocket milling, dense-hole drilling and multi-side channel machining.
A controlled machining sequence is essential for producing complex gas-delivery features efficiently.
